Prisma Digital Tire Pressure Gauge HPM5 With Infrared Tire Pyrometer & Stopwatch

PrismaSKU: HPM5+PYR-IR+STW

Price:
Sale price$395.00

Description

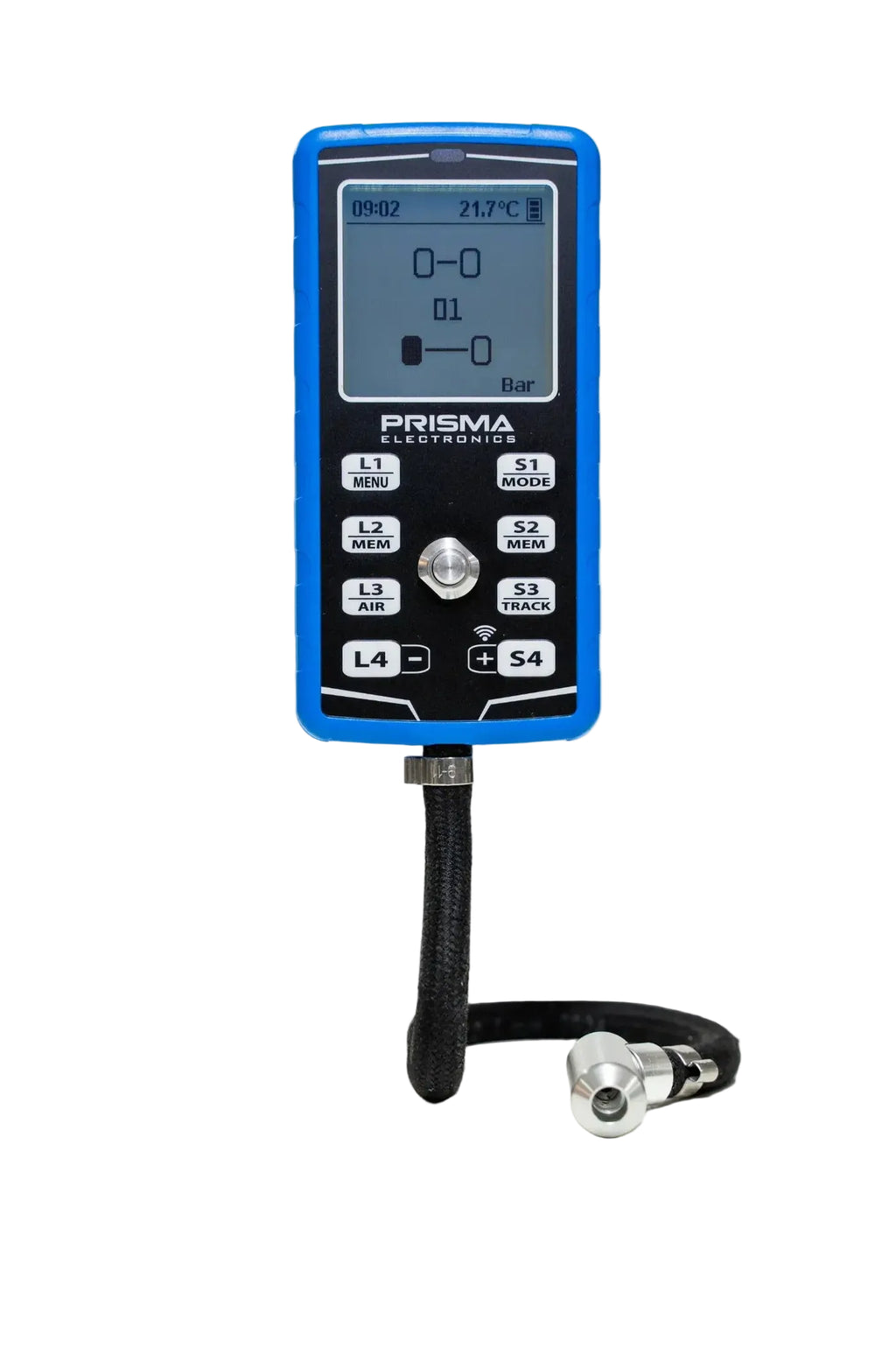

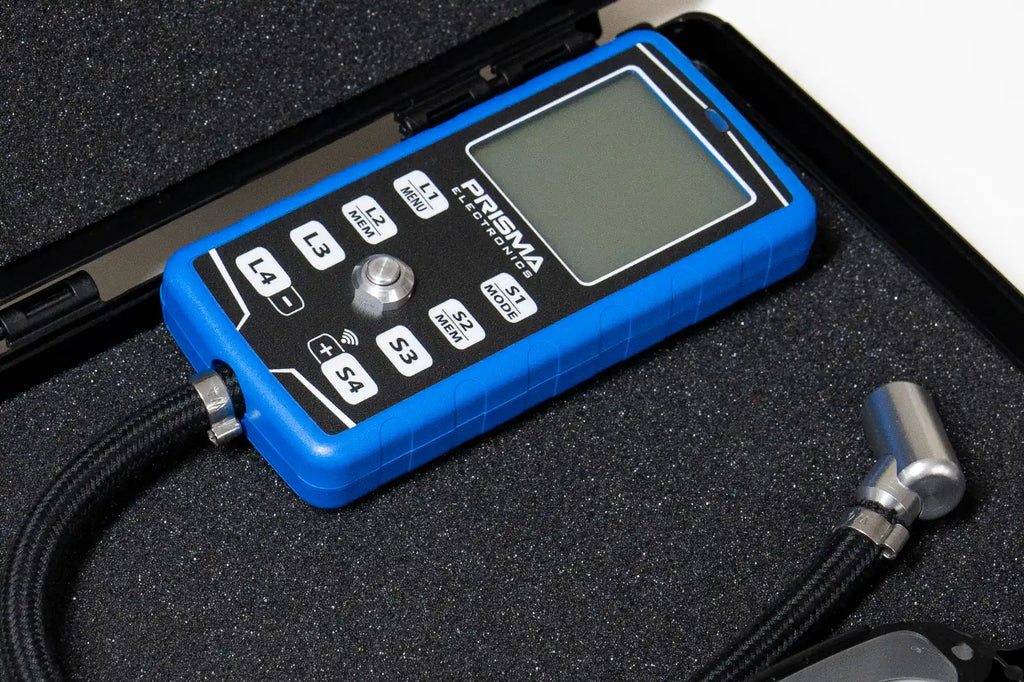

HPM5 Digital Tire Pressure Gauge with Infrared Pyrometer and Stopwatch

Digital Tire Pressure Gauge HPM5 with an Infrared Sensor for tire temperature measurement and a Multi-Rider Digital Stopwatch, the HPM5 is a versatile instrument that combines three functionalities in one device. You can measure Tire pressure,Tire temperature, and lap times for up to four riders, complete with split times.

Measure and Save:

  • Tire Pressure
  • 12 Points of Tire Temperatures
  • Air Temperature
  • Track Temperature
  • 50 Pressure + Temperature sessions
  • 5 Stopwatch Sessions

Specifications:

  • Pressure Resolution: 0.001 BAR / 0.01 PSI
  • Pressure Range: 0 - 7 BAR (100 PSI)
  • Tire Chuck: Custom aluminum design by Prisma Electronics, ensuring measurements without air loss from the wheel valve.
  • Quick Functions Key

Wireless Connectivity: Use the Prisma Electronics APP to view and export all stored sessions.

MORE THAN A TIRE GAUGE

We have combined three essential instruments into one:

  • Digital Tire pressure gauge HPM5
  • Infrared Sensor for Tire Temperature Measurement
  • Lap Timer

This innovative instrument integrates a high-precision digital pressure gauge, an infrared pyrometer and a multi-driver stopwatch, offering all the essential instruments needed on the track in one complete solution.

RELIABILITY

The HiPreMa5 digital tire pressure gauge requires no calibration. Its internal microprocessor automatically performs the necessary procedure to provide a reliable measure of 100% every time it is turned on.

DESIGNED FOR MOTORSPORT PROFESSIONALS

Aluminum tire chuck designed by Prisma Electronics to ensure measurement without air loss from the wheel valve.

Set up your HPM5 instrument using Quick Buttons for a fast TIRE pressure and TEMPERATURE measurement process.

Pressure Offset
Temperature Measurement Modes
P/T Mode
Pit Stop Mode
HOT tire function
Why Are These Features Useful?
Video Tutorial

Connect wireless the instrument with APP

With the new APP for the HPM5 gauges you can connect your instrument and for each session you can

ANALYZE - DOWNLOAD - SHARE - EXPORT

What data can you view and download?

The Pressure sessions and the Stopwatch sessions of all 4 drivers with their respective Split times.

Tire Pressure Gauge
DATA SAVED FOR EACH SESSION
  • 50 complete sessions saved in the internal memory of the instrument
  • Date and Time of each session
  • Air ambient temperature
  • Cold and Hot pressure and relative difference
  • Vehicle number
PRESSURE SHOT® FUNCTION

A very easy of use way of quickly just checking the hot tyre pressure. By activating this function the pressure gauge HPM5 save automatically the HOT tire pressures without pressing any buttons.

PRESSURE RANGE and RESOLUTION

Pressure Range : 0 - 7BAR - 100PSI

Pressure Resolution: 0.001BAR - 0.01PSI

CALIBRATION

Tire pressure gauge HPM5 does not require calibration. The internal microprocessor automatically performs the procedure in order to reach a reliable measure at 100%.

MENU LANGUAGES

ENGLISH - ITALIAN - FRENCH

TIRE PYROMETER
TEMPERATURE RESOLUTION

0.1°C - 0.1°F

INFRARED SPECS
  • Temperature accuracy +/- 1°C
  • Temperature resolution 0.1°C
  • Response Time 0.5 sec
  • FOV 35°
  • STOPWATCH
    DATA SAVED FOR EACH SESSION
    • 4 Drivers
    • 9 Split Time for each LAP
    • Export Excel file for each session with all Lap and relative Split times
    • Date and Time of each session
    • Air ambient temperature
    • 5 Sessions
    SPLIT TIMES MODE
    • MODE A - Absolute Split times mode
    • MODE I - Incremental Split Times mode
